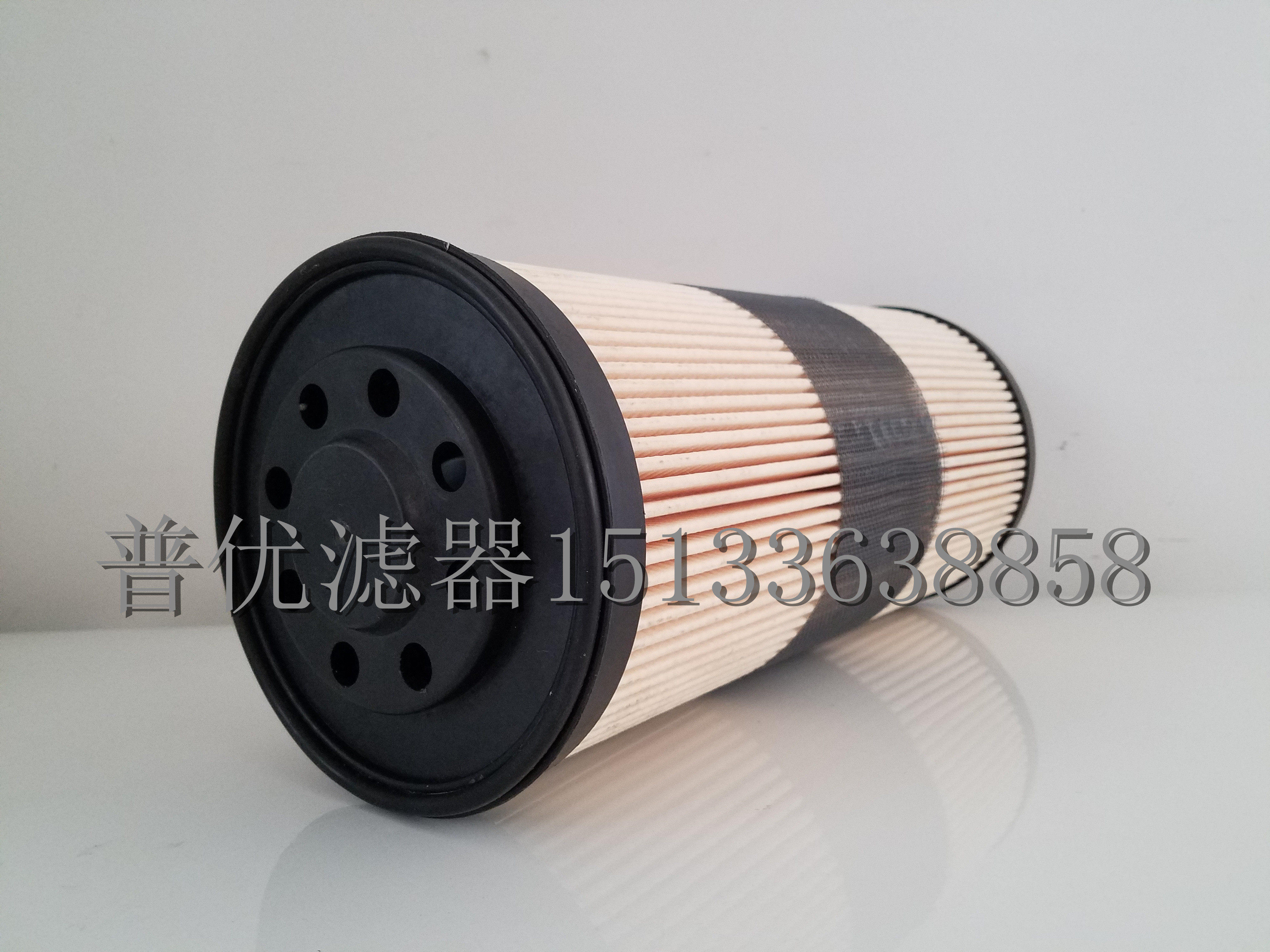

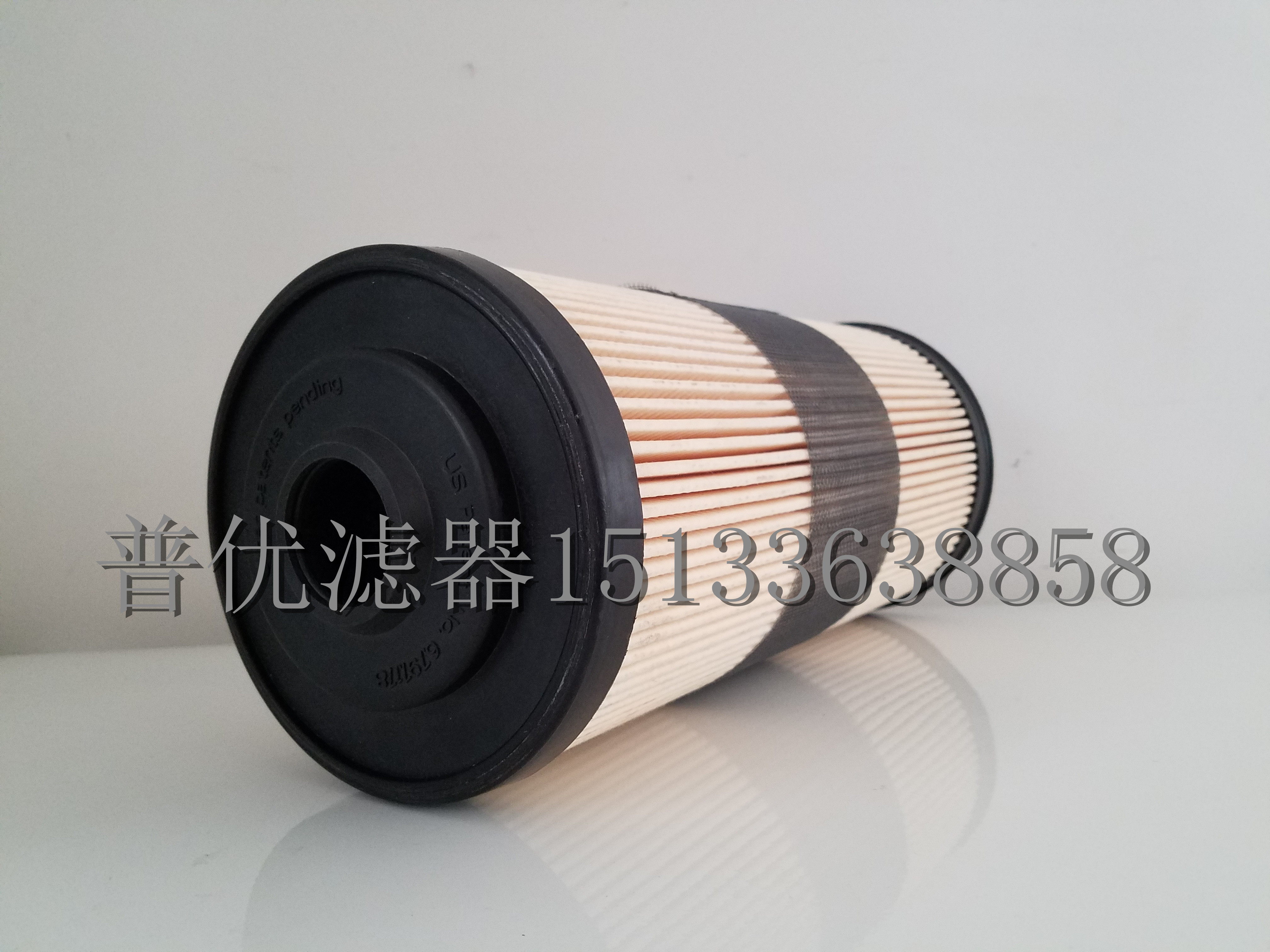

FBO60336 filter element FBO-10 fuel separator FBO60339 FBO60342 FBO60337

FBO series
Long life and high performance
Diesel filter element
The engine and mobile filter department has developed a new 3D coalescing filter medium
Represents the progress of diesel fuel filtration and water separation. New elements enable operators to meet
Respond to the challenges of increasingly complex fuels and increasingly demanding business environments. new
FBO elements can extend the service life by 50% and significantly improve water separation in fuels containing biodiesel.
The new degassing function allows the element to work more efficiently in suction applications

Three different media stages are used. The first stage will actively remove impurities, and the second stage will coalesce or
Before the final barrier stage prevents re-entrainment, large water droplets grow from the emulsified water in the fuel
Of water. The new coalescing medium, designed as an upgraded version, should
Take precedence over the existing FBO series coalescers. The new level of media enables
Coalescer elements are used for low-quality fuels, and previously only absorbents were used.
How does it work?
Phase 1: Fuel encounters high capacity
Synthetic pleated particle filter media. this
The unique fold design maximizes the surface area,
Ensure consistent flow and provide excellent
Particle retention efficiency. When the fuel passes
Through pleated packaging, larger unwanted particles
been deleted.
Phase 2: The fuel passes through multiple layers of treated coating
Deep coalescing medium. Here, the partially filtered fuel interacts
Use multi-density coalescer to effectively increase water
Separate droplets> 200 microns from emulsified droplets <5 microns.
Then these big drops fall into a collecting bowl
Most of the emulsified water comes from fuel.
Phase 3: Finally, before the fuel leaves the filter, there is a central
The hydrophobic woven mesh filter element prevents any
Now leave the filter and enter the large droplets of fuel
system.
RACOFBO-14, FBO60337 part is the water separator fuel filter. The water separator filter removes water and pollutants from the hydrocarbon fuel stream and is the most popular filter. FBO 60337 is rated for 5 micron filters. Learn more about the series of filter housings.

Gu'an Kingrick Filter Co. Ltd focuses on the production of industrial filters and provides solutions for industrial dust removal, hydraulic lubrication filtration, HEPA high-efficiency air filtration, natural gas coalescence filtration, aviation fuel impurity removal water separator.
